| Page 4 |
DETAIL
OF R•K• LODGE TIPIS
The radius of the
Tipi is the size and not the height.
Example:
Size 18' Lodge - Floor measurements, front to back 18'; Side
to side 17'; Height 15'.
All
Tipis are cut minimum of
2 1/2" oversize.

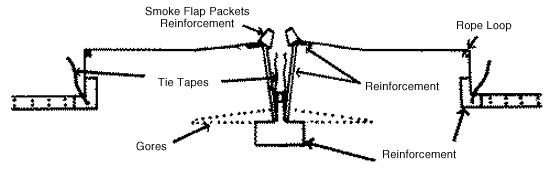

SMOKE
FLAP AND REINFORCEMENT CONSTRUCTION
SMOKE FLAP POCKETS
DOUBLE MATERIAL
Page 4
SMOKE
FLAP POCKETS DOUBLE MATERIAL
| SIOUX
STYLE |
CHEYENNE
STYLE
Smoke
Flap Extensions |
 |
 |
| Page
4 |
LINERS
ARE MADE IN 3 SECTIONS
Ties
attached |
 |
| EXAMPLE OF
ONE SECTION |
|
| Page
5 |
Ties
are attached for tying to poles and rope, but can be left
off. Please specify.
Liner in place 6" to 10" folds inside for ground
flap.
|
